INSTRUCTIONS

Step one

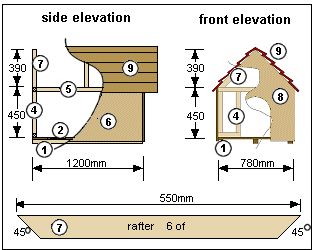

Pre-cut all the timber skids, flooring, plates, studs and rafters to the lengths as stated in the cutting list on the previous page and cut the plywood wall panels to the pattern as shown on the plywood sheet drawing below.

Step two

Fix the 8 150mm x 19mm 780mm long floorboards (# 2) to the three under floor skids (# 1) with 50mm flathead Galvanized nails. Ensure the finished floor dimensions are 780mm x 1200mm. The three under floor skids should be evenly spaced with two each side and one in the middle.
